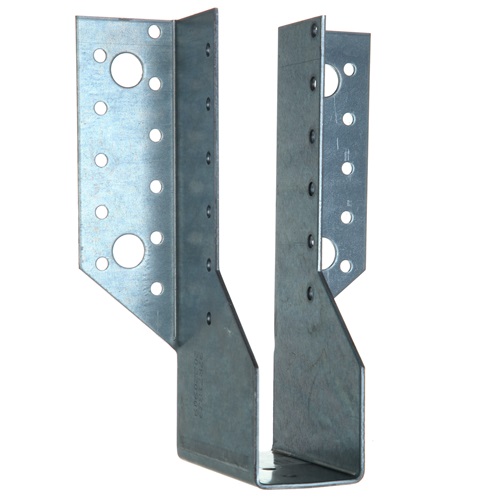

Simpson Strong-Tie SAE heavy duty face fix hanger, designed for applications requiring additional strength. Hangers have bolt holes for 12mm fasteners into the face and whilst primarily a timber to timber hanger can be fixed to masonry using MetFix Vinylester Resin and M12 Studs. Made from blanks 250/380/500 & 620mm and bent to common timber widths. This means that often the same hanger will suit multiple heights of timber. The hanger depth is required to be 60% or more of the height of the timber unless additional lateral restraint is added to the top of the carried member.
***CLICK HERE FOR TECHNICAL SPECIFICATIONS***
Simpson Strong-Tie SAE500/38/2 38mm Width
x 231mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500038
|
|
Simpson Strong-Tie SAE500/40/2 40mm Width
x 230mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500040
|
|
Simpson Strong-Tie SAE500/47/2 47mm Width
x 227mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500047
|
|
Simpson Strong-Tie SAE500/50/2 50mm Width
x 225mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500050
|
|
Simpson Strong-Tie SAE500/56/2 56mm Width
x 222mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500056
|
|
Simpson Strong-Tie SAE500/63/2 63mm Width
x 219mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500063
|
|
Simpson Strong-Tie SAE500/66/2 66mm Width
x 217mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500066
|
|
Simpson Strong-Tie SAE500/72/2 72mm Width
x 214mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500072
|
|
Simpson Strong-Tie SAE500/75/2 75mm Width
x 213mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500075
|
|
Simpson Strong-Tie SAE500/78/2 78mm Width
x 211mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500078
|
|
Simpson Strong-Tie SAE500/91/2 90mm Width
x 205mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500091
|
|
Simpson Strong-Tie SAE500/96/2 96mm Width
x 202mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE500096
|
|
