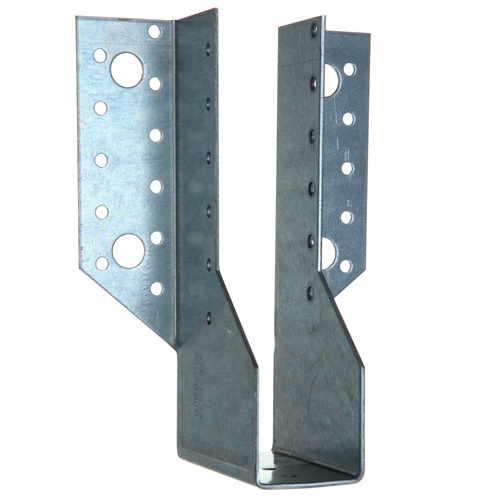

Simpson Strong-Tie SAE heavy duty face fix hanger, designed for applications requiring additional strength. Hangers have bolt holes for 12mm fasteners into the face and whilst primarily a timber to timber hanger can be fixed to masonry using MetFix Vinylester Resin and M12 Studs. Made from blanks 250/380/500 & 620mm and bent to common timber widths. This means that often the same hanger will suit multiple heights of timber. The hanger depth is required to be 60% or more of the height of the timber unless additional lateral restraint is added to the top of the carried member.
***CLICK HERE FOR TECHNICAL SPECIFICATIONS***
Simpson Strong-Tie SAE600/38/2 38mm Width
x 281mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600038
|
|
Simpson Strong-Tie SAE600/40/2 40mm Width
x 280mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600040
|
|
Simpson Strong-Tie SAE600/44/2 44mm Width
x 278mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600044
|
|
Simpson Strong-Tie SAE600/47/2 47mm Width
x 277mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600047
|
|
Simpson Strong-Tie SAE600/50/2 50mm Width
x 275mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600050
|
|
Simpson Strong-Tie SAE600/56/2 56mm Width
x 272mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600056
|
|
Simpson Strong-Tie SAE600/63/2 63mm Width
x 269mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600063
|
|
Simpson Strong-Tie SAE600/66/2 66mm Width
x 267mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600066
|
|
Simpson Strong-Tie SAE600/72/2 72mm Width
x 264mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600072
|
|
Simpson Strong-Tie SAE600/75/2 75mm Width
x 263mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600075
|
|
Simpson Strong-Tie SAE600/78/2 78mm Width
x 261mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600078
|
|
Simpson Strong-Tie SAE600/91/2 91mm Width
x 255mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600091
|
|
