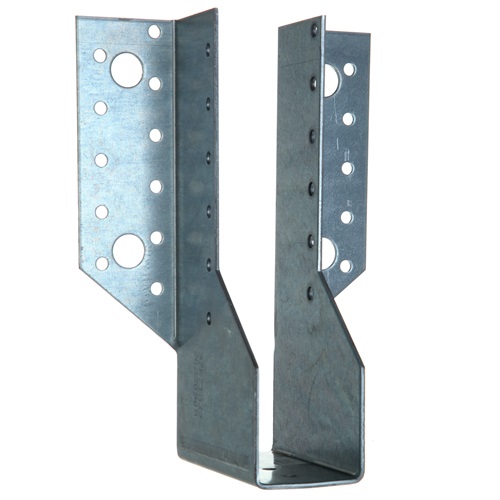

Simpson Strong-Tie SAE heavy duty face fix hanger, designed for applications requiring additional strength. Hangers have bolt holes for 12mm fasteners into the face and whilst primarily a timber to timber hanger can be fixed to masonry using MetFix Vinylester Resin and M12 Studs. Made from blanks 250/380/500 & 620mm and bent to common timber widths. This means that often the same hanger will suit multiple heights of timber. The hanger depth is required to be 60% or more of the height of the timber unless additional lateral restraint is added to the top of the carried member.
***CLICK HERE FOR TECHNICAL SPECIFICATIONS***
Simpson Strong-Tie SAE600/196/2 196mm Width
x 202mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600196
|
|
Simpson Strong-Tie SAE690/225 225mm Width
x 195mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE690225
|
|
Simpson Strong-Tie SAE720/182/2 182mm Width
x 269mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE720182
|
|
Simpson Strong-Tie SAE720/196/2 196mm Width
x 262mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE720196
|
|
