The BTALU concealed hanger is one solution to connecting timber members together without seeing the connector.
It is designed to be fixed to the header timber and then fully inserted into a slot in the in-coming beam, and held in place with dowels. Holes are drilled through the timber and fin of the BTALU, allowing accurate alignment. This method provides an aesthetically pleasing connection for feature beams.
Material: Aluminium - Minimum Joist Height: 292mm.
Dowels Embedment length (mm) available are 60, 80, 100, 120, 140, 160.

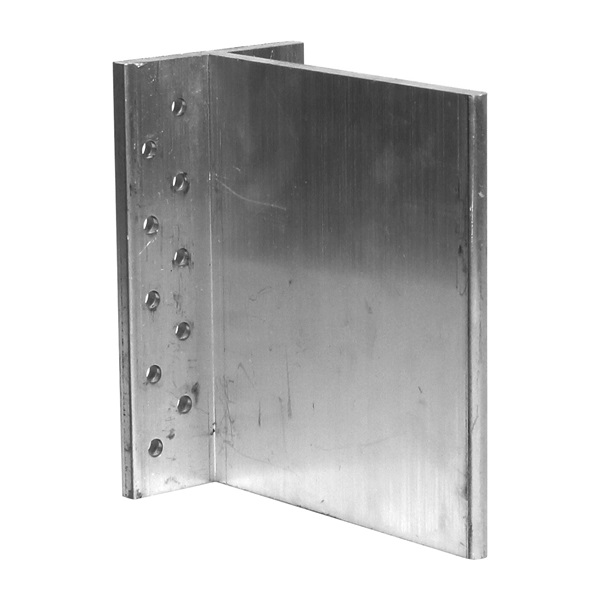

Simpson Strong-Tie BTALU240 Concealed Joist Hanger
Concealed Beam Hanger Pre-Galv 60mm Dowels
Product Code: 78BTALU240B12060
| Dowel Length: |
|
|
