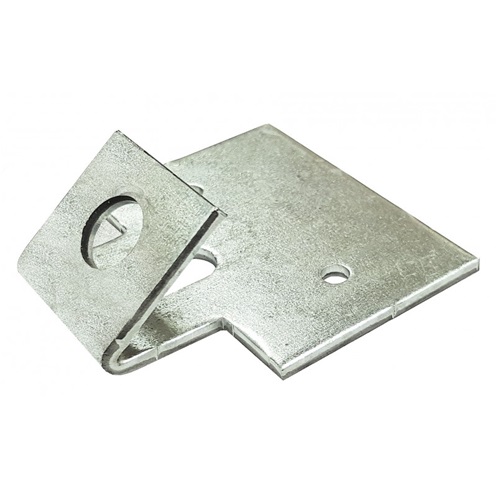

TFPC Timber Frame Panel Closer

The timber panel closer helps minimise air leakage at the joint between closed panels and also prevents damage to the exterior substrate when using a screw alone. Use 4 x TFPC per typical 2.4m vertical panel joint. The TFPC can also be used to connect the timber frame panel to the sole plate.

The screw guide is to be used in conjunction with a SDW22458 screw (included).
Quick and easy solution to closing adjoining timber panels.
Minimise air leakage at the joint between closed panels.
Prevent the exterior substrate being damaged if the screw had been used on its own.
The use of the SDW22458 screw achieves a characteristic capacity shear value of 3 kN per TFPC.
The bold thread design firmly clinches plies together to close gaps in multi-ply assembles.
The TFPC can also be used to provide characteristic capacity uplift of 1.9 kN per TFPC when connecting the timber frame panel to the sole plate.
